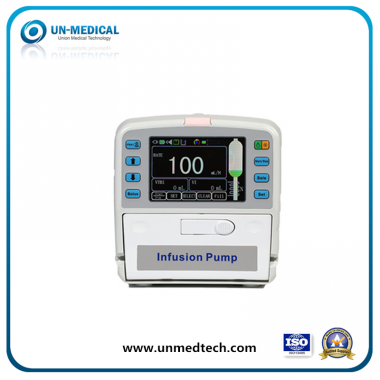

Product name | Infusion Pump |
Model | UNB12 |
MOQ | 1 |
Main features:
1. Bright color and large LCD Touch Screen
2. Small size, easy to carry and economical to transport
3. Compatible with infusion tubes any standard
4. Three infusion modes for your selection
5. KVO & Bolus function
6. Intelligent pressure detection & occlusion detection(adjustable on 3 levels)
7. Audiovisual alarm, shockproof and waterproof
8. Autosave previous infusion record
Technical Parameters
Infusion mode | Rate mode, Drip mode, Micro mode |
Infusion set | Any brand of infusion set |
Infusion accuracy | ±5% |
Infusion rate range | Normal mode:1~1200ml/h, increment 1 ml/h; |
KVO rate | 1-8ml/h |
Purge/Bolus rate | 300-1200ml/h |
Volume To Be Infused (VTBI) | 1~9999 ml |
Air Bubble detection | Ultrasound sensor detection of air bubble |
Occlusion detection | Occlusion pressure detection adjustable on 3 levels |
Alarm | Over, Low battery, Air, Occl., AC power failure, Door open, Time waited out, Error, Countdown |
Displayed information | AC power connection, Power, Volume, Door open, Tube, Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Infusion rate, VTBI, Volume infused |
Power supply | AC 110-240V 50-60HZ |
Battery | Rechargeable lithium battery, 7.4 V, 2400mAh; |
Dimensions | 135x90x135 mm (L×W×H) |
Weight | ≤1.5Kg |
Classification | Class II, BF type |
Waterproof level | IPX3 |
